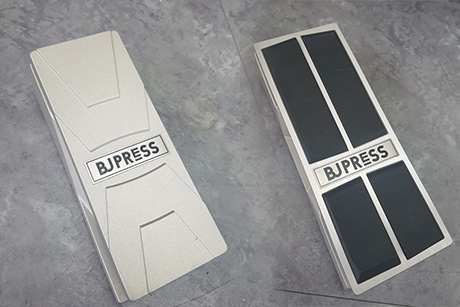

BOSS 500L / 30L Mod

ㆍNo signal / dynamic loss
ㆍLow Impedance model
ㆍFor FX Position

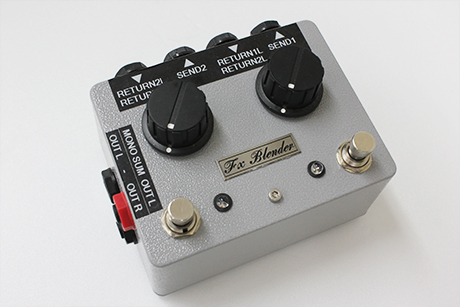

2ch Parallel Mixer mono / stereo

Dry signal + wet signal + wet signal
Only Use for fx effector blender

1. Dry signal In, out jack
2. 2 loop (send1,rtn1), (send2,rtn2)
3. 2 chanel mix knob (each chanel control)
4. 2 chanel on/off Footswitch (each chanel on/off)
5. 2 chanel on/off LED. (Ch1 =Red, Ch2 = Blue)
6. DC Jack

[Feature]
Spillover 2 loop chanel
9~18v DC 70mA
Level 9v +4dbu center (-)
In/out Mono jack

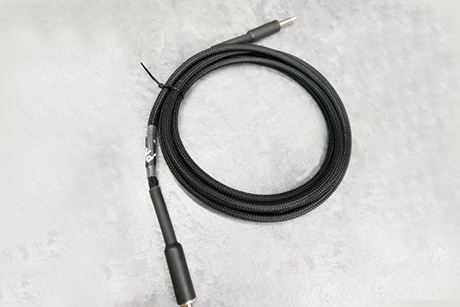

passive 3m, full range, no dynamic loss

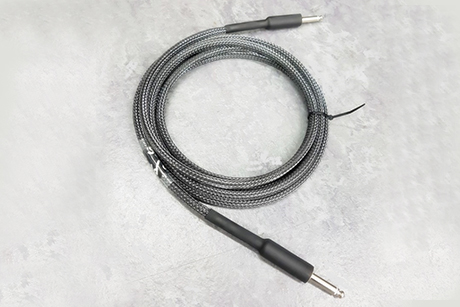

passive 3m, wide range, more low, dynamic sound
